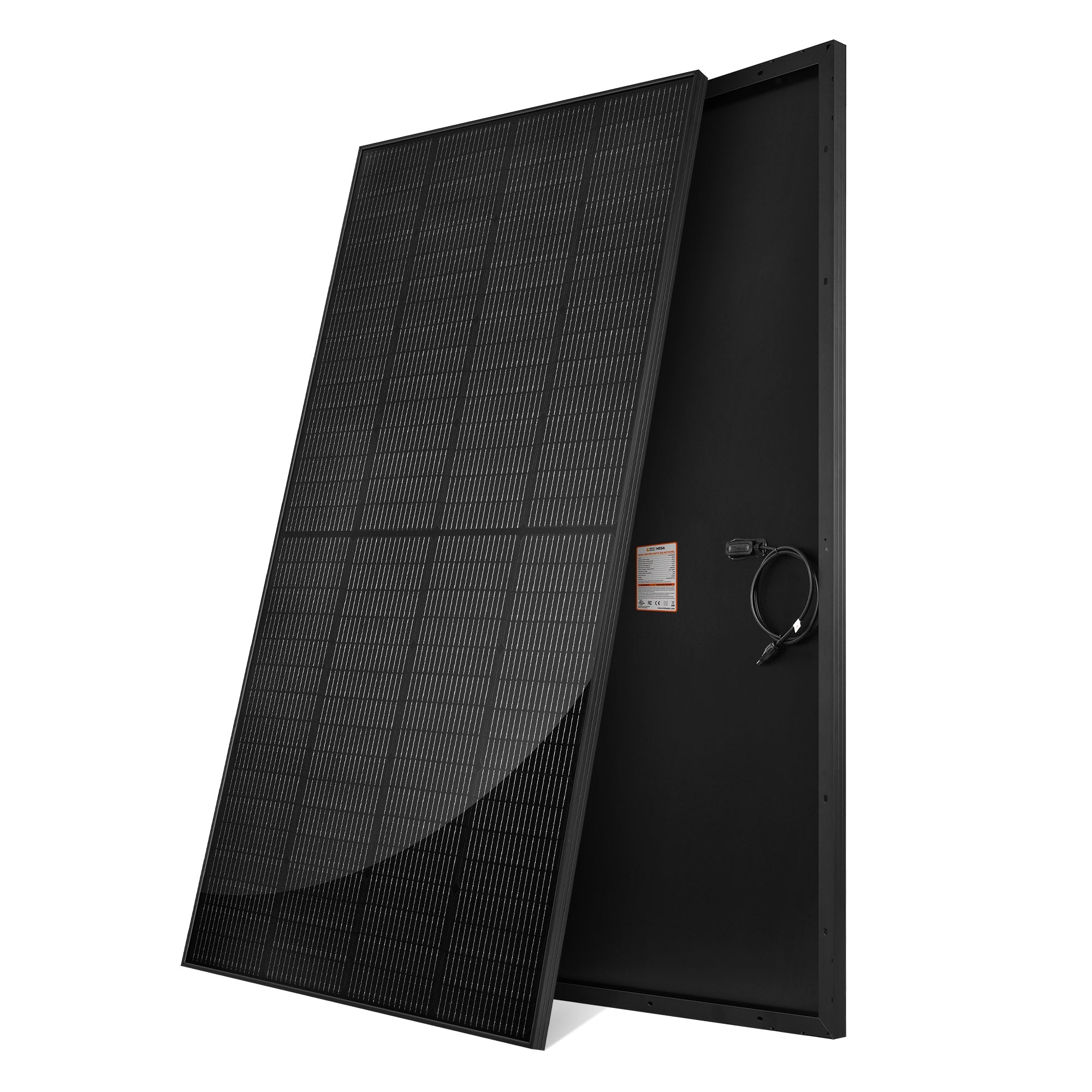

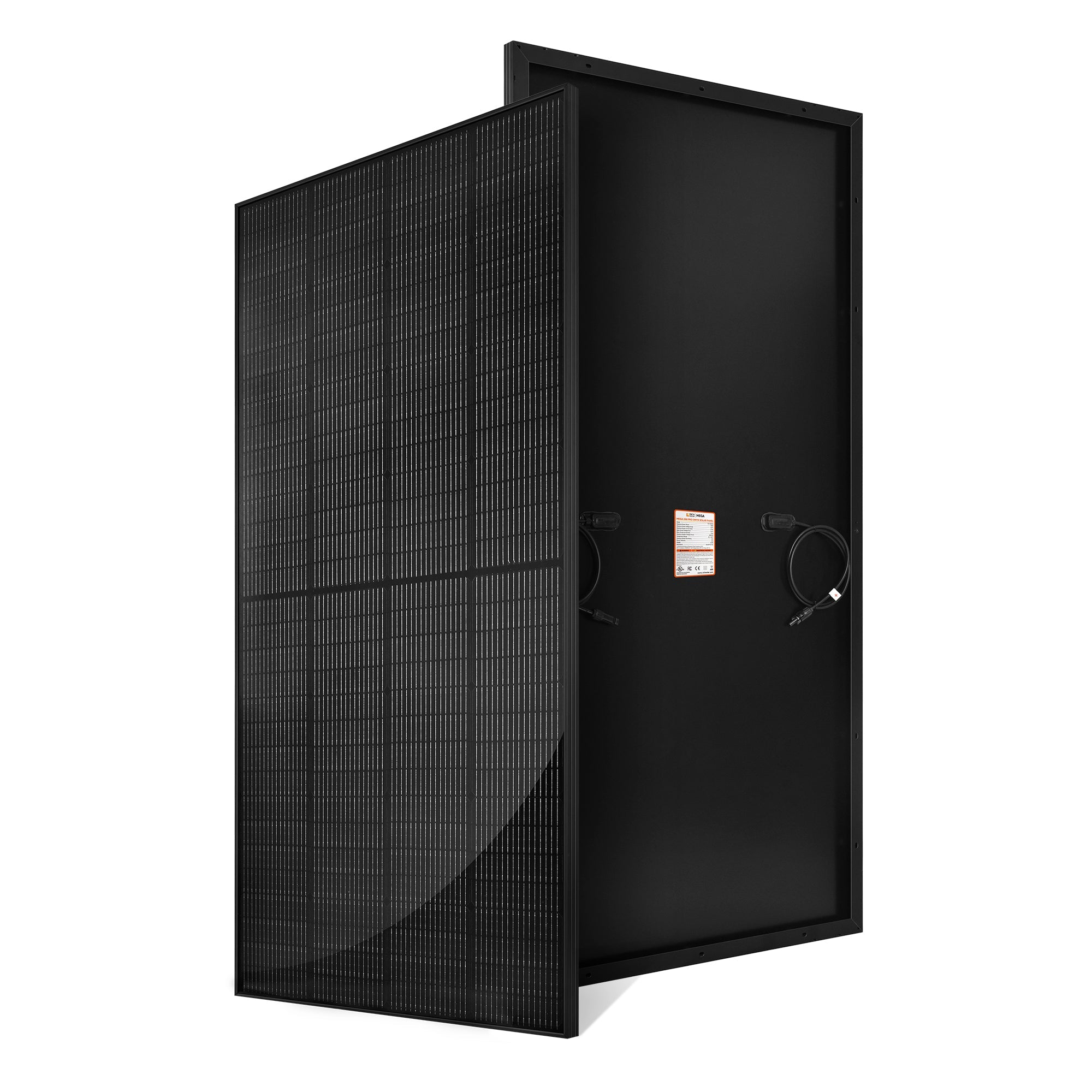

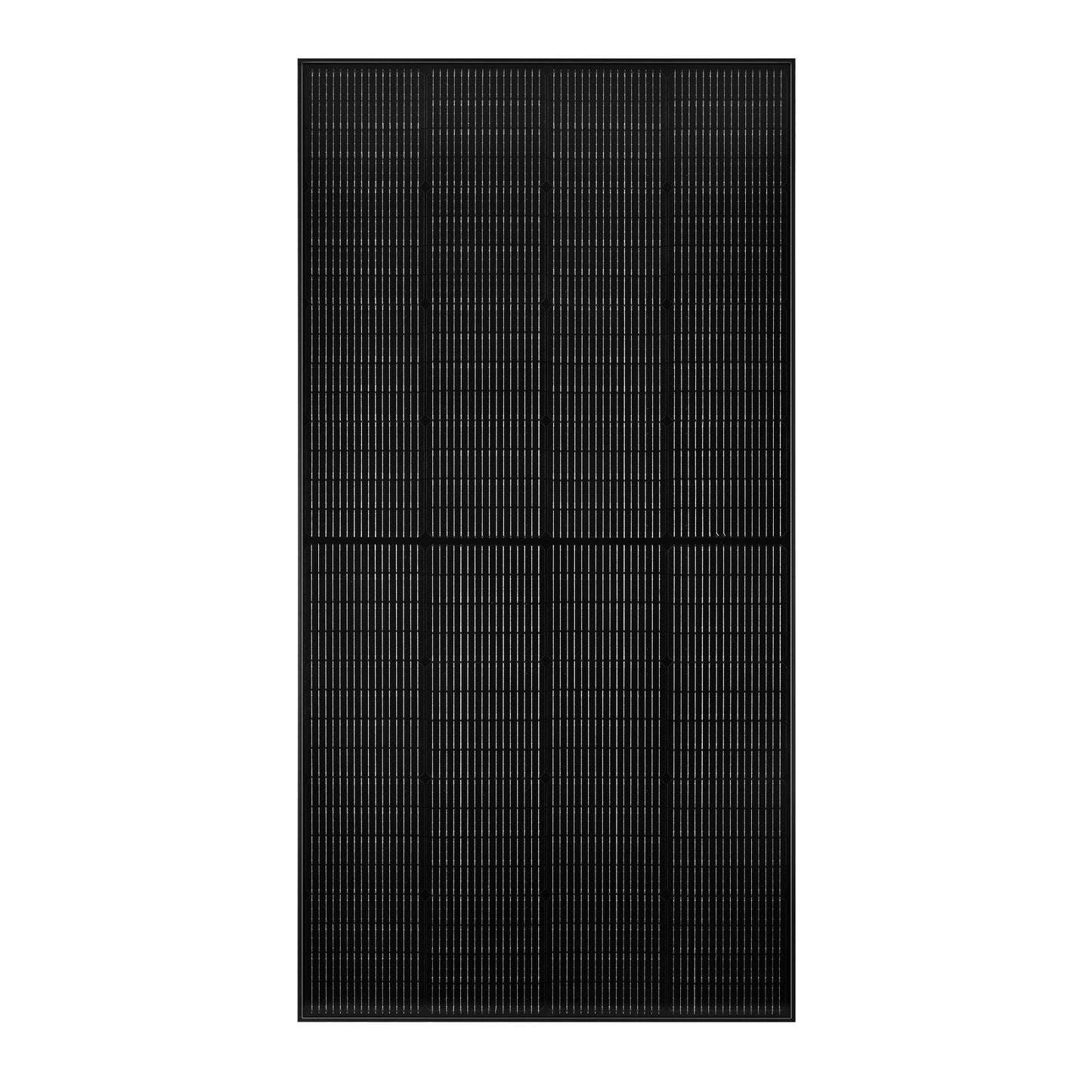

RICH SOLAR Mega 250 Pro Onyx 250W 24V Off-Grid Solar Panel

Upgrade your off-grid setup with the RICH SOLAR Mega 250 Pro Onyx 250-Watt 24-Volt Solar Panel, available now at Garage Tools Storage. Engineered explicitly for high-performance mobile and remote energy systems, this premium 24V monocrystalline panel is the ultimate choice for campers, van conversions, tiny homes, and remote cabins.

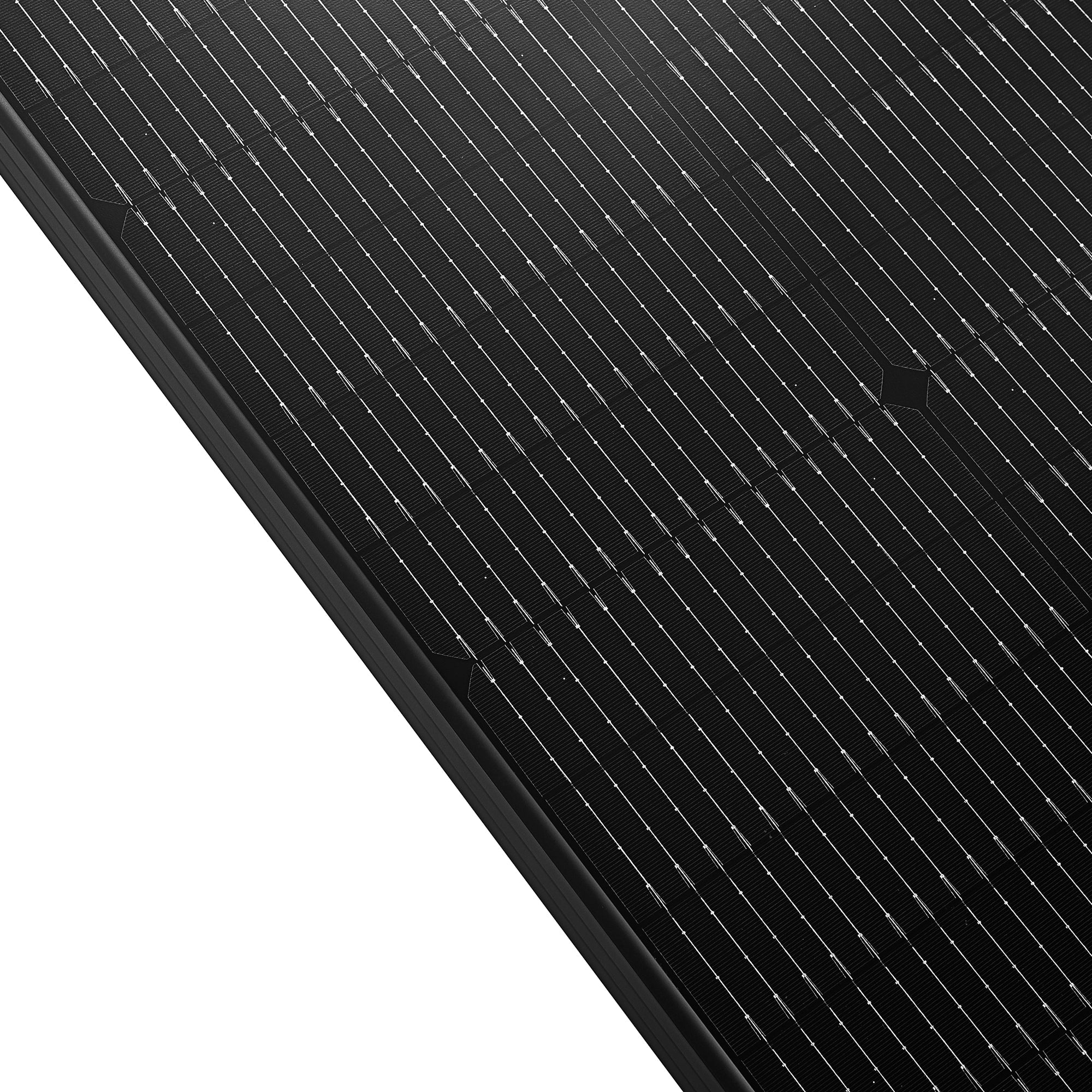

By utilizing next-generation TOPCon N-Type cell technology and an advanced 16-busbar design, the Mega 250 Pro Onyx delivers an impressive 25.1% maximum efficiency. This means more power generated per square inch, even during overcast days or in low-light environments.

Watch: Introducing the RICH SOLAR Mega 250 Pro 24V Panel

Learn why a 24V architecture changes the game for high-wattage arrays. Watch the official breakdown below to see how its low-amperage design prevents line loss and handles real-world shading scenarios perfectly.

Why Choose a 24-Volt Solar Panel for Off-Grid Power?

Most traditional portable panels operate on a 12V system. The Mega 250 Pro steps up to a native 24V architecture to provide distinct advantages for larger power setups:

• Lower Line Loss: Higher voltage allows for lower amperage across your wiring, significantly reducing energy loss over long cable runs.
• Optimized Parallel Performance: Low amperage makes it much safer and more efficient to wire multiple panels in parallel—perfect for situations where one panel might experience partial shading.

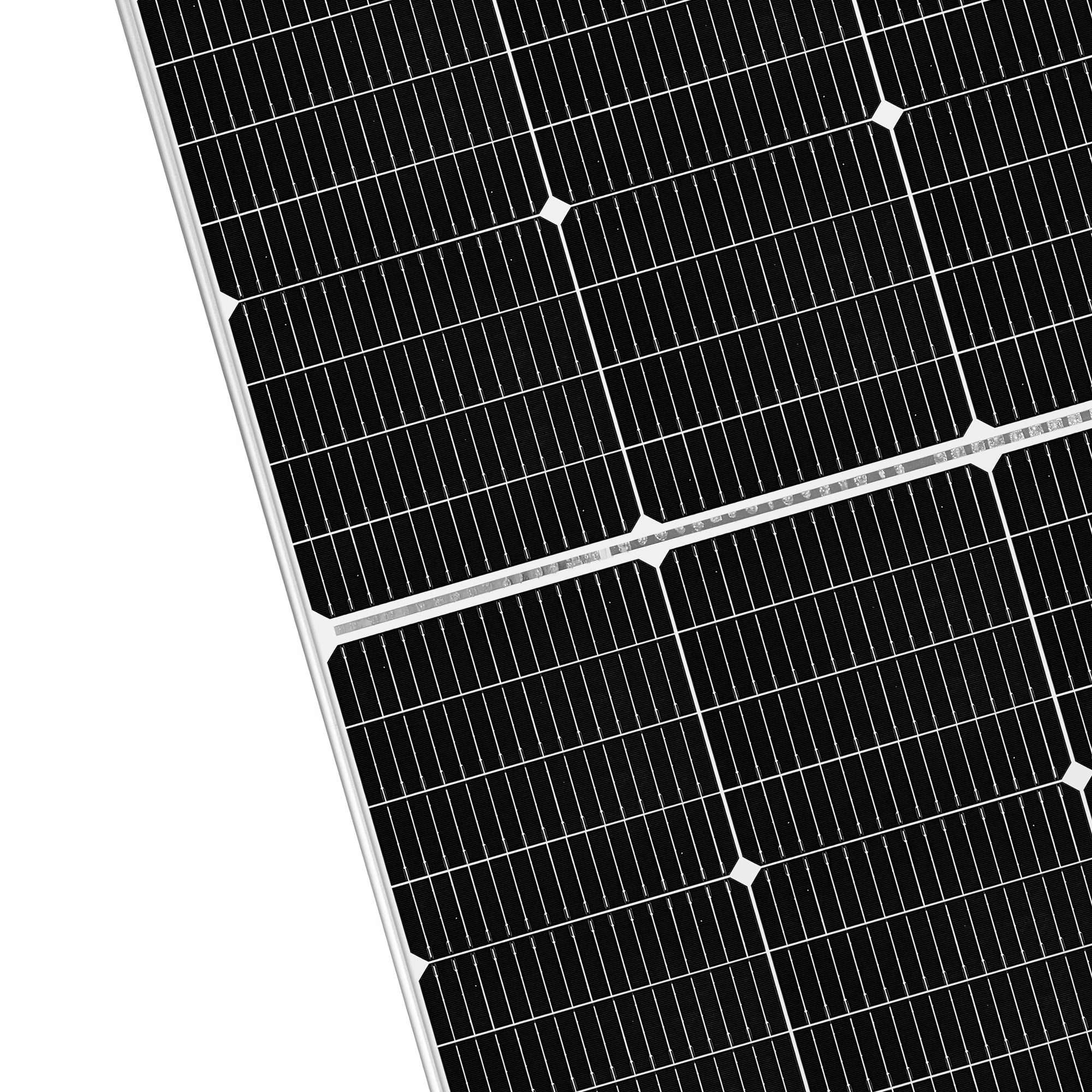

• Split Energy Technology: Built with 64 separate half-cut cells. If the bottom half of the panel is blocked by shade, the top half continues to output power independently.

Key Features & All-Weather Durability

• TOPCon N-Type Silicon: Delivers superior real-world output with an exceptional temperature coefficient (-0.35%/°C), keeping your power stable even during extreme summer heat.

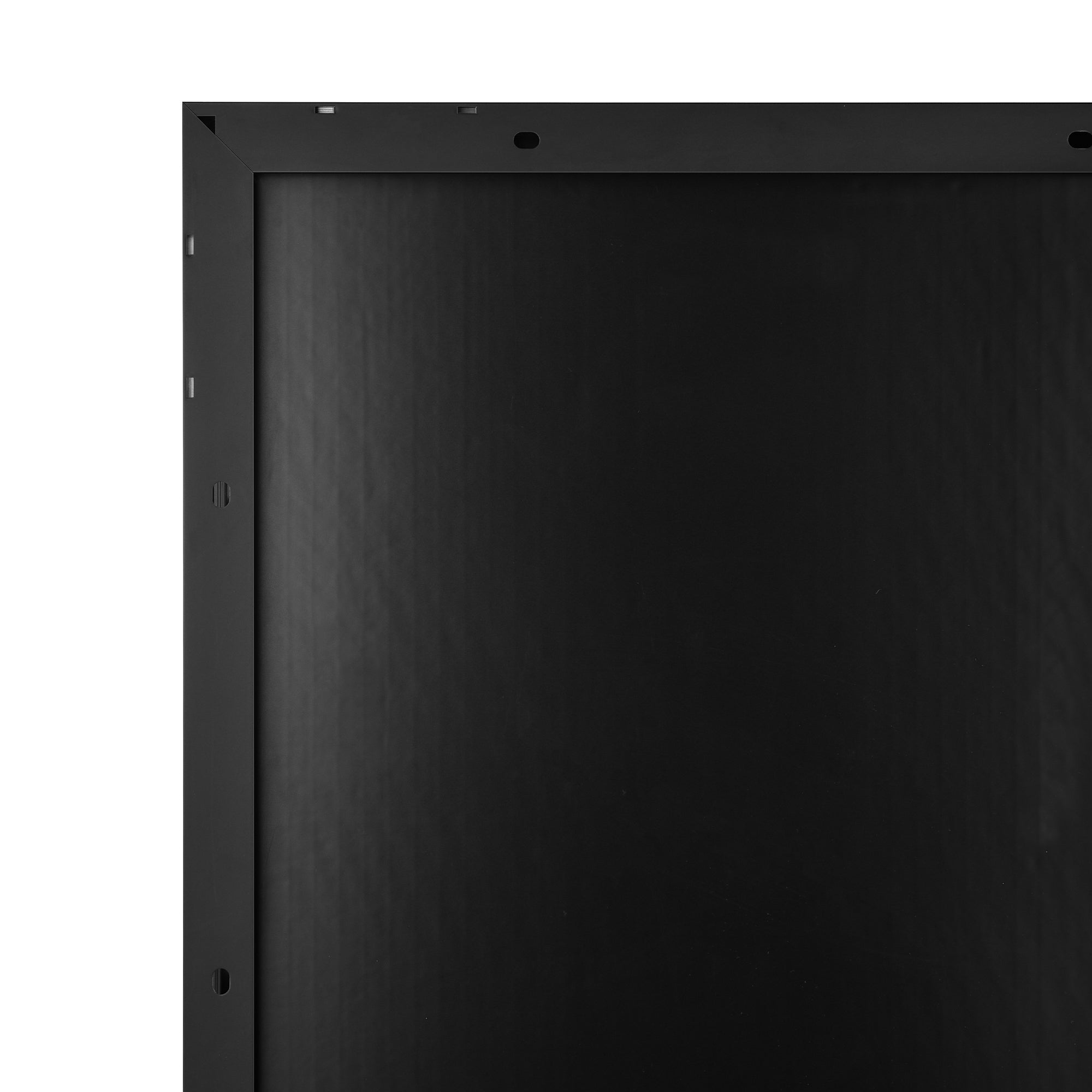

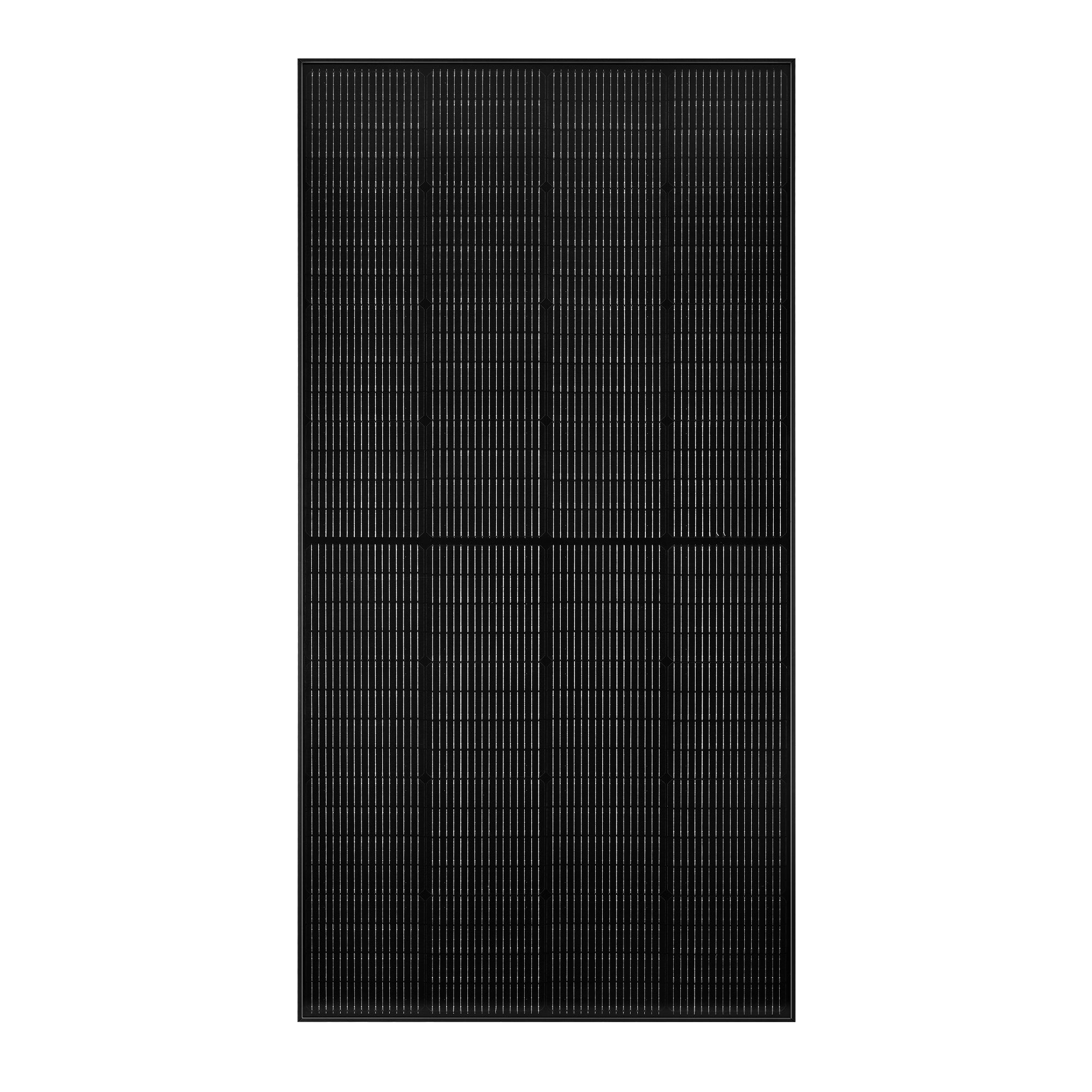

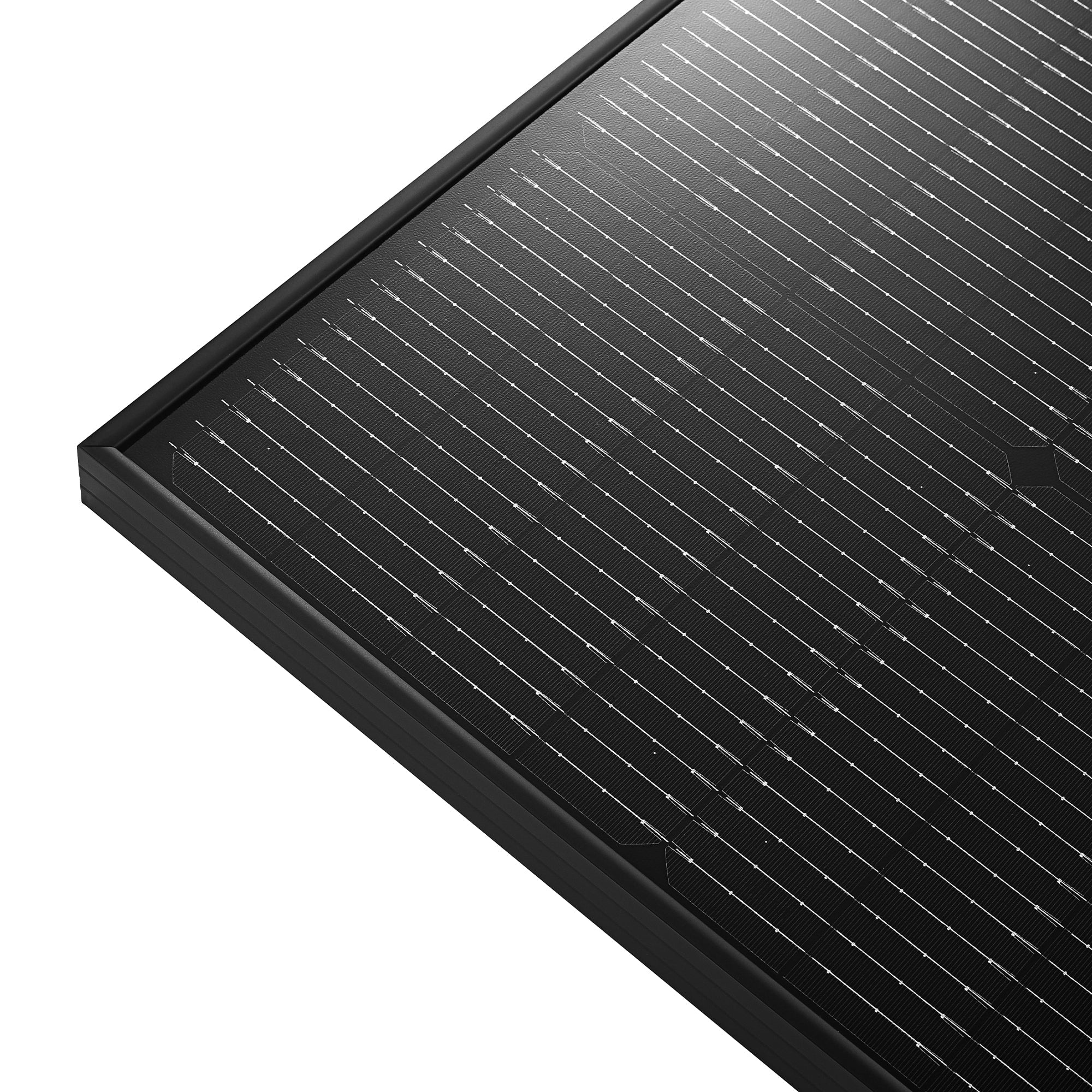

• All-Black Onyx Aesthetic: The premium all-black frame and cell design look sleek and modern on any vehicle roof or residential structure.
• Extreme Weather Resistance: Features 3.2 mm AR-coated tempered glass. Fully certified to withstand high wind, heavy snow loads, salt mist, ammonia, sand, and high humidity.

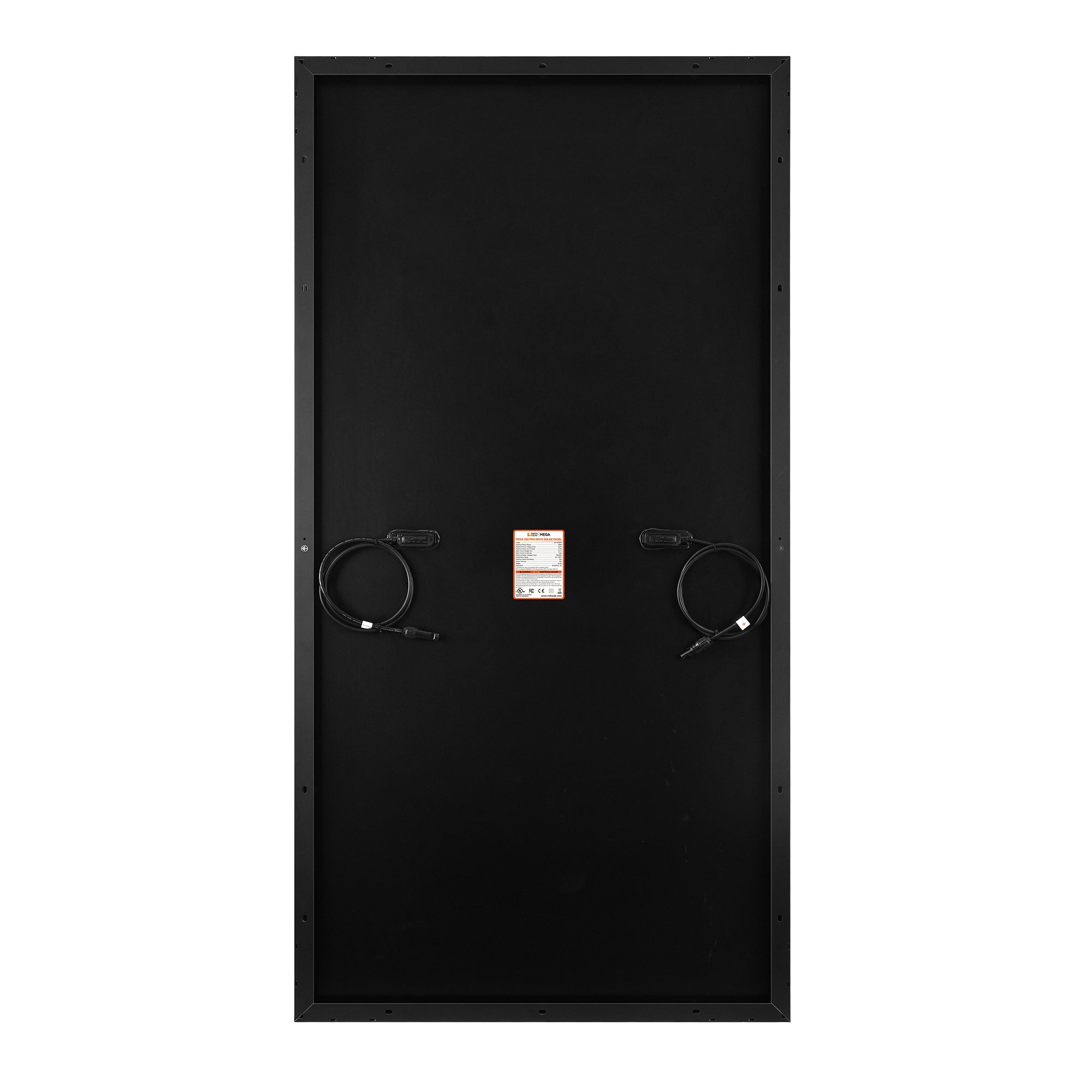

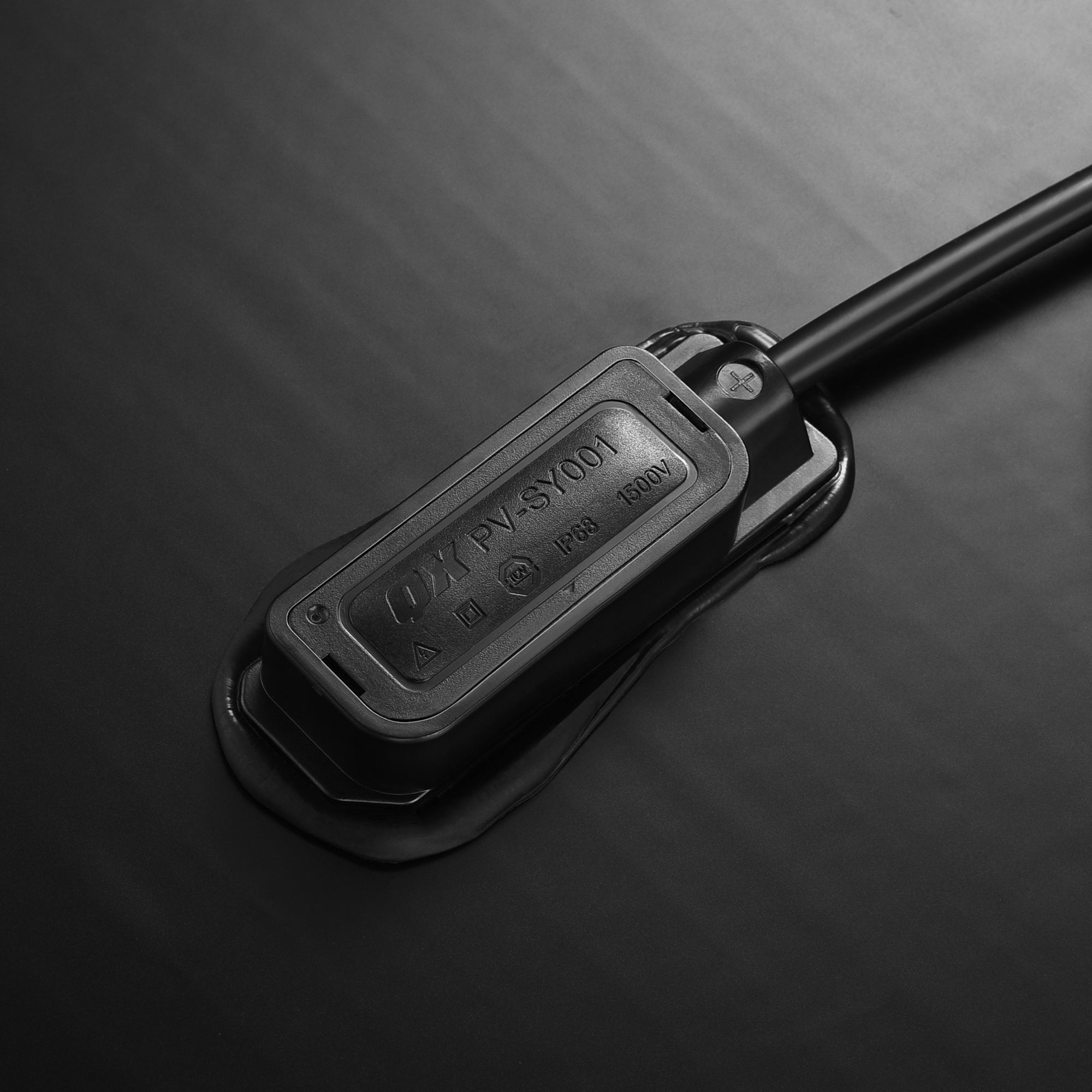

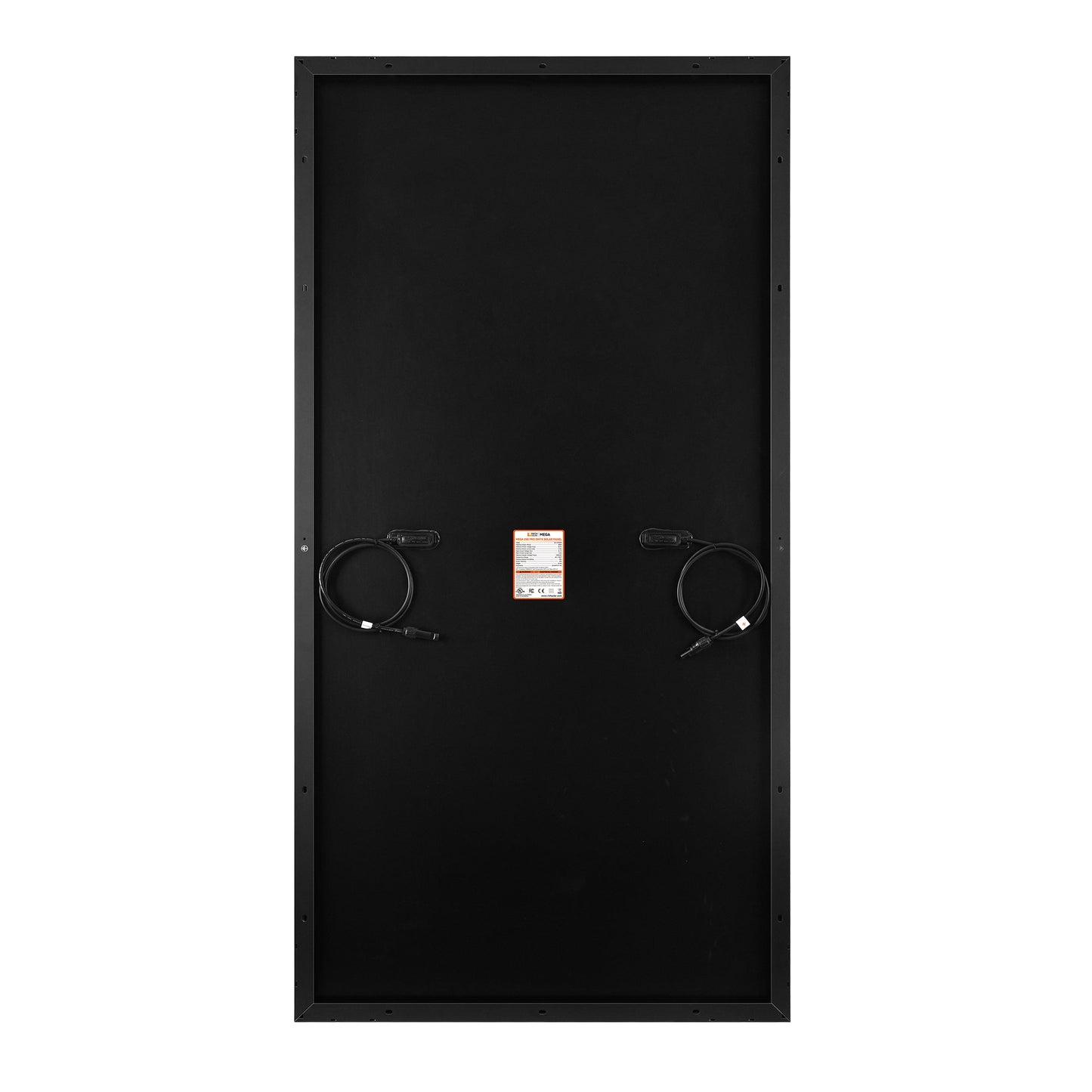

• IP68 Waterproof Protection: Completely sealed junction box and pre-attached 4-foot cables with MC4 connectors ensure dependable plug-and-play operation in driving rain.
• 25-Year Output Warranty: Built to endure. Guaranteed to output more than 95% of its rated power after 5 years, 90% after 10 years, and at least 80% after 25 years.

Technical Specifications

Frequently Asked Questions (FAQ)

Do I need an inverter to use this 24V solar panel?

If you only intend to charge a battery bank, you do not need an inverter—you only need a compatible charge controller. However, if you want to power standard 110V household appliances (like a TV, laptop charger, or refrigerator), you will need an inverter to convert the DC battery power into AC electricity.

Will this solar panel still work during winter or cloudy days?

Yes. As long as there is daylight, TOPCon N-Type solar panels will generate electricity. In fact, cooler winter air can actually improve overall performance due to lower operating temperatures. However, panels will not generate power if covered by heavy snow, intense shade, or thick dirt, so it is recommended to keep them clear.

Can this solar panel drain my battery at night?

No, provided you have an active solar charge controller installed in your system. The charge controller prevents reverse current from flowing back into the panels when the sun goes down.

How can I avoid common mistakes when installing this panel?

To maximize your energy harvest, avoid mounting panels directly in the shadow of AC units or roof vents. For optimal year-round efficiency in North America, tilt the panels between 30 and 45 degrees facing true south. Make sure to clean the tempered glass surface periodically with non-abrasive tools to remove dust and debris.
