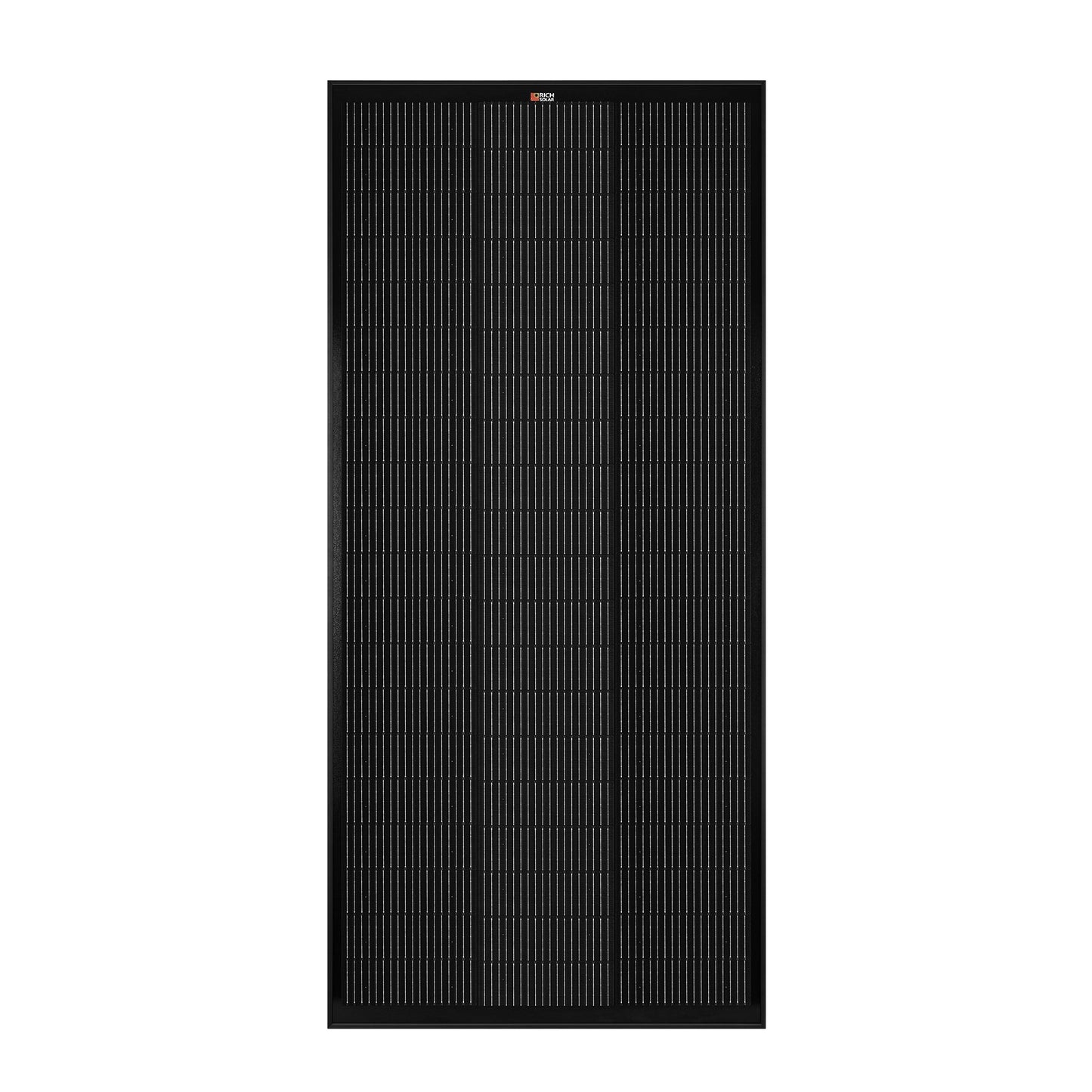

Rich Solar MEGA 200 MAX (PRO) 24V Monocrystalline Solar Panel.
Rich Solar
- Regular price
- Price: $249.99
- Regular price
- List Price:
- Sale price
- Price: $249.99
- Unit price
- per
Couldn't load pickup availability
Share
PRODUCT DESCRIPTION

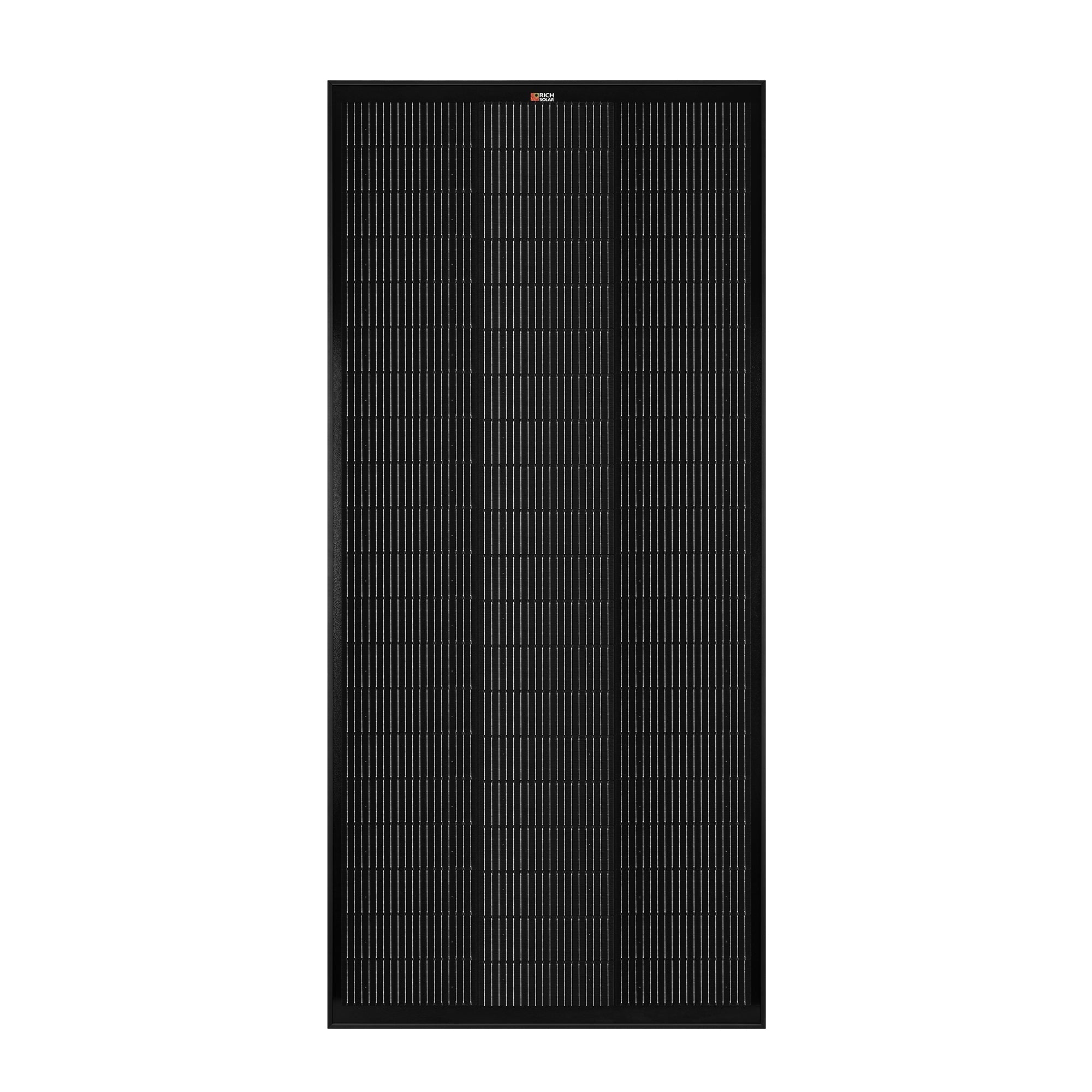

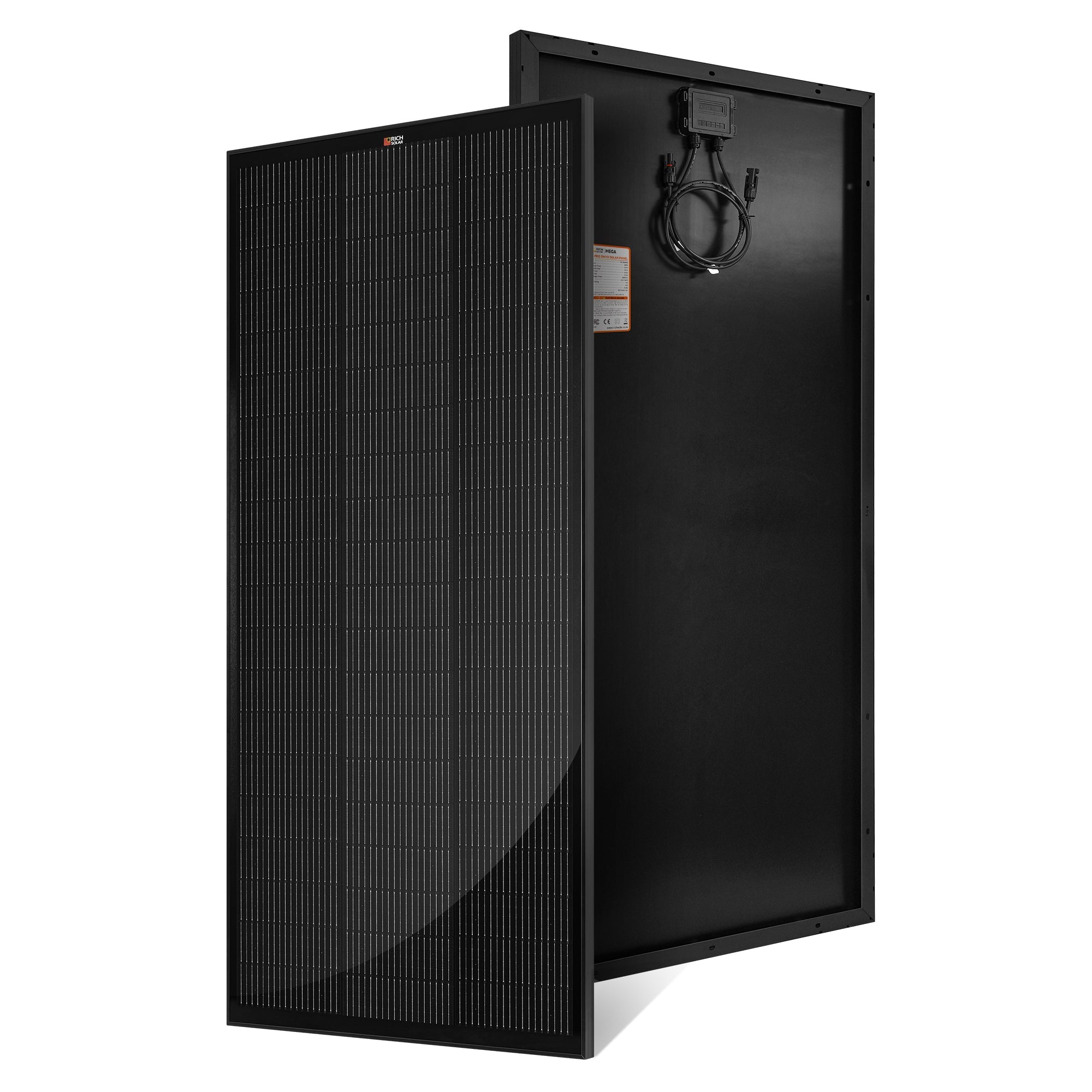

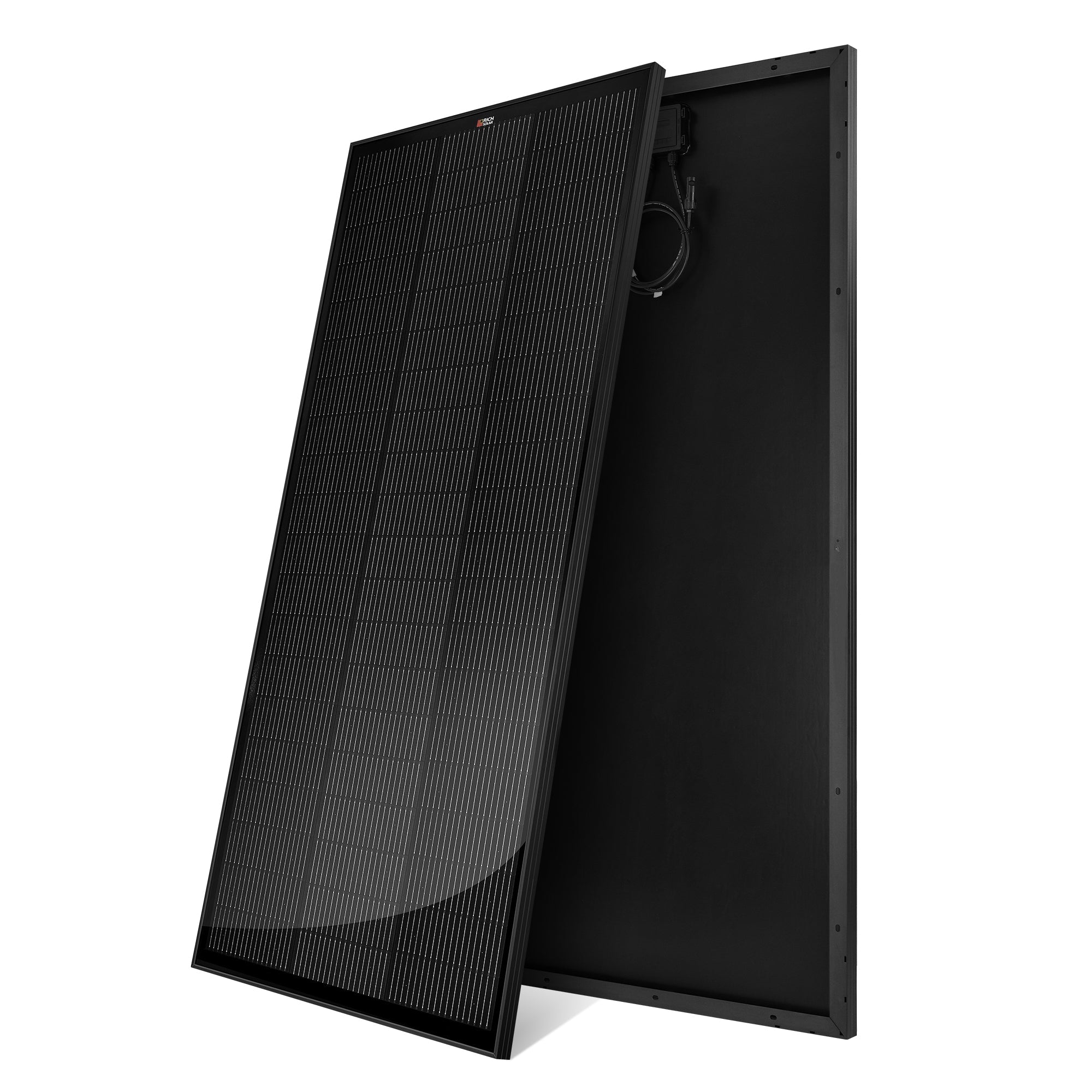

The Rich Solar MEGA 200 MAX (PRO) is a premium 200-watt, 24-volt monocrystalline solar panel engineered for heavy-duty off-grid power systems. Built with cutting-edge N-Type TopCon solar cells, it achieves an industry-leading 24.8% conversion efficiency, offering superior low-light performance and ultra-low degradation over its 25-year lifespan. Perfect for RVs, vans, cabins, overland trailers, and marine setups, this high-voltage panel simplifies wiring by replacing multiple lower-voltage panels with a single high-output footprint.
Product Videos & Explanations
Introducing: Rich Solar Mega 200 Watt Solar Panel
Watch the official overview showcasing the physical profile, high-voltage design advantages, and real-world off-grid adaptability of the MEGA 200 system.
How Efficient are Monocrystalline Solar Panels?
Learn how monocrystalline single-crystal silicon technology provides more space for electrons to move, yielding superior conversion efficiency compared to traditional polycrystalline alternatives.
Why Choose the Rich Solar MEGA 200 MAX?
- Advanced N-Type TopCon Technology: Provides up to 24.8% maximum solar energy conversion efficiency. N-type cells yield excellent performance on cloudy days or during early morning/late afternoon hours.
- High-Voltage Efficiency: At 24 volts, a single MEGA 200 panel can do the work of two standard 12V panels, reducing cable clutter, preventing line-voltage drops, and simplifying systemic wiring layout.

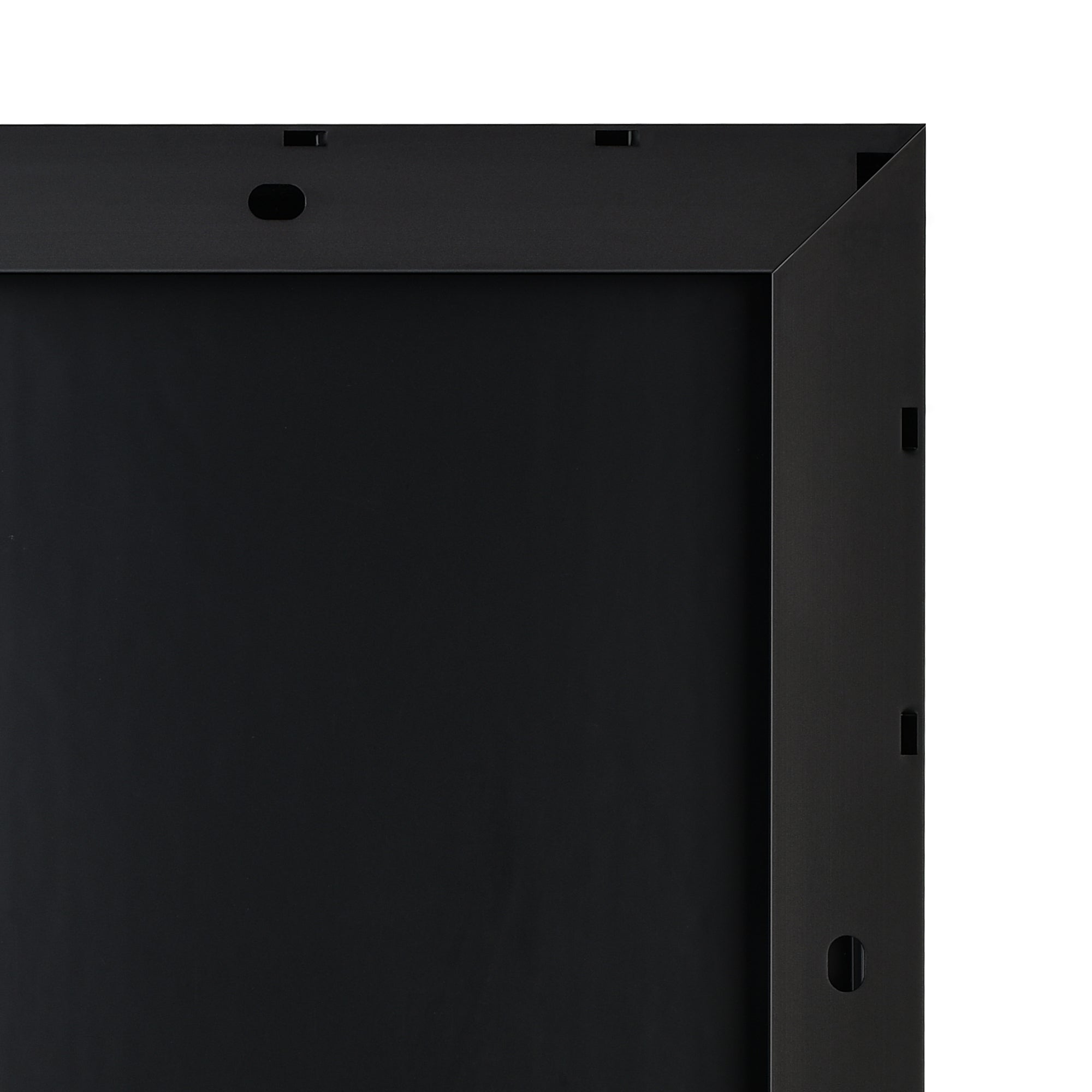

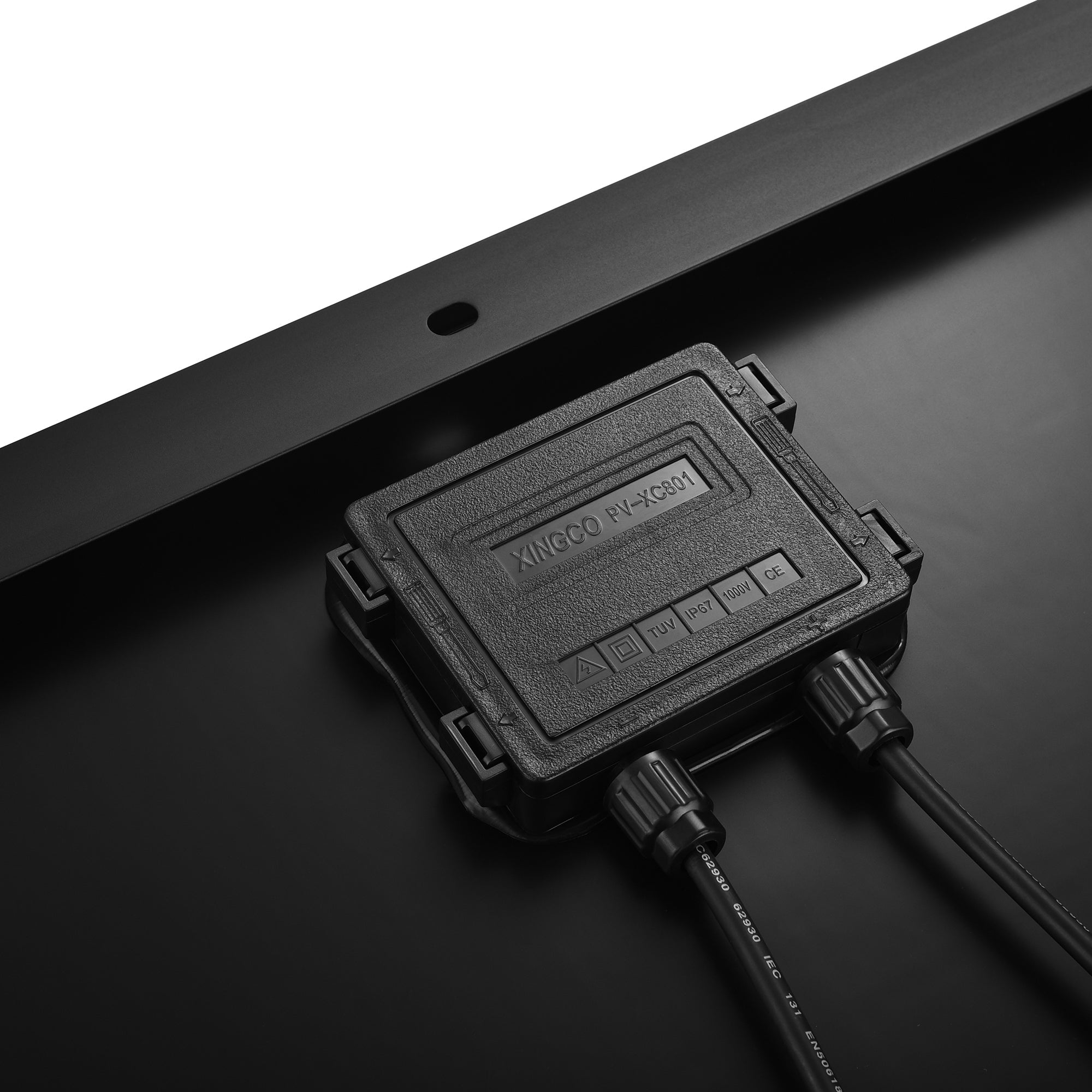

- Built for Extreme Conditions: Features 3.2mm high-transparency tempered glass paired with a heavy-duty, corrosion-resistant anodized aluminum frame. Rated IP67 waterproof with sealed junction boxes and integrated MC4 connectors.

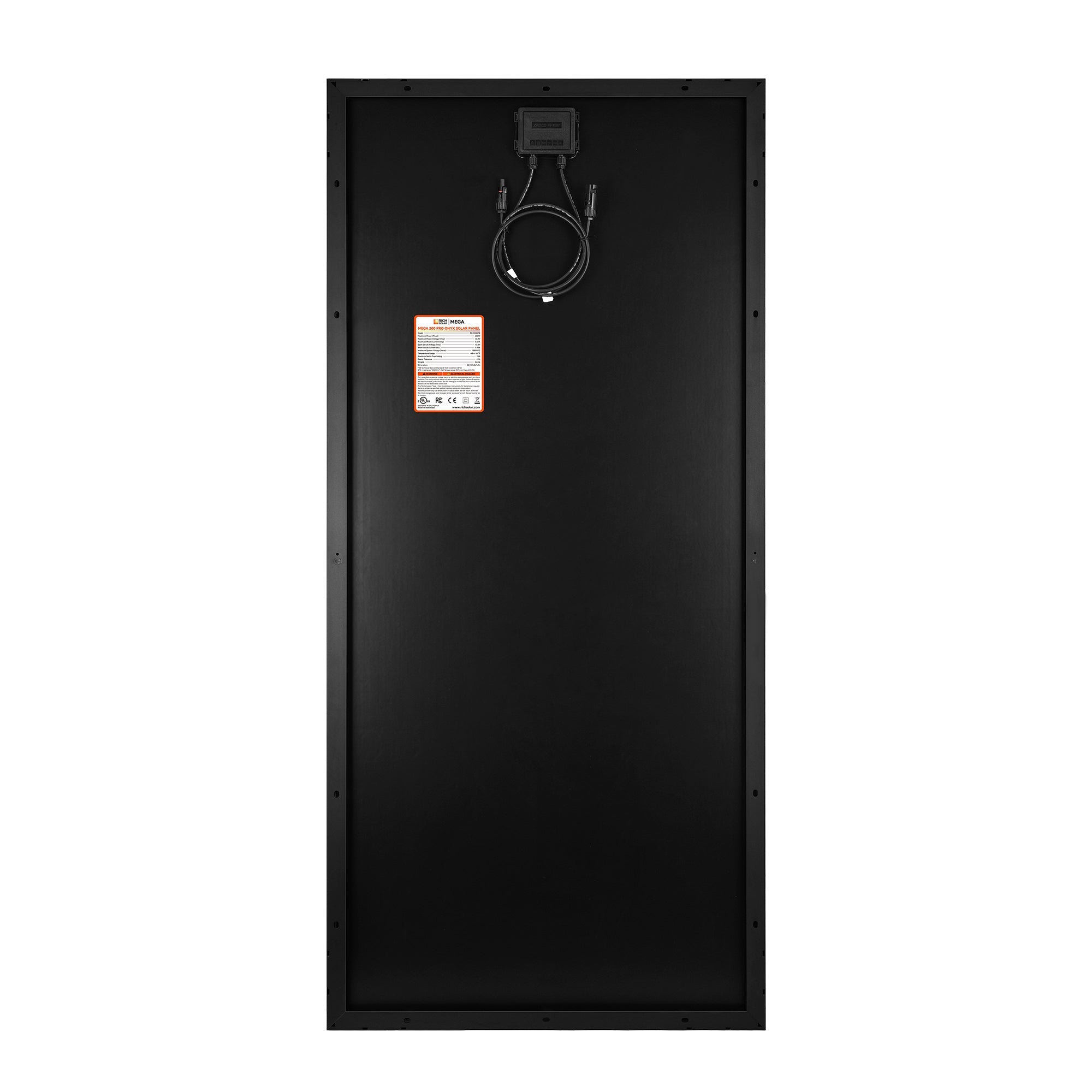

- Hassle-Free Setup: Arrives out of the box with pre-drilled holes for rapid mounting. Includes 3-foot pre-attached solar cables for quick plug-and-play linking to MPPT solar charge controllers.
Technical Specifications
| Specification Parameter | Value / Rating |
|---|---|
| Maximum Power (Pmax) | 200 Watts |
| Maximum Power Voltage (Vmp) | 36.3V |
| Maximum Power Current (Imp) | 5.51A |
| Open Circuit Voltage (Voc) | 43.5V |
| Short Circuit Current (Isc) | 5.93A |
| Maximum System Voltage | 1000V DC |

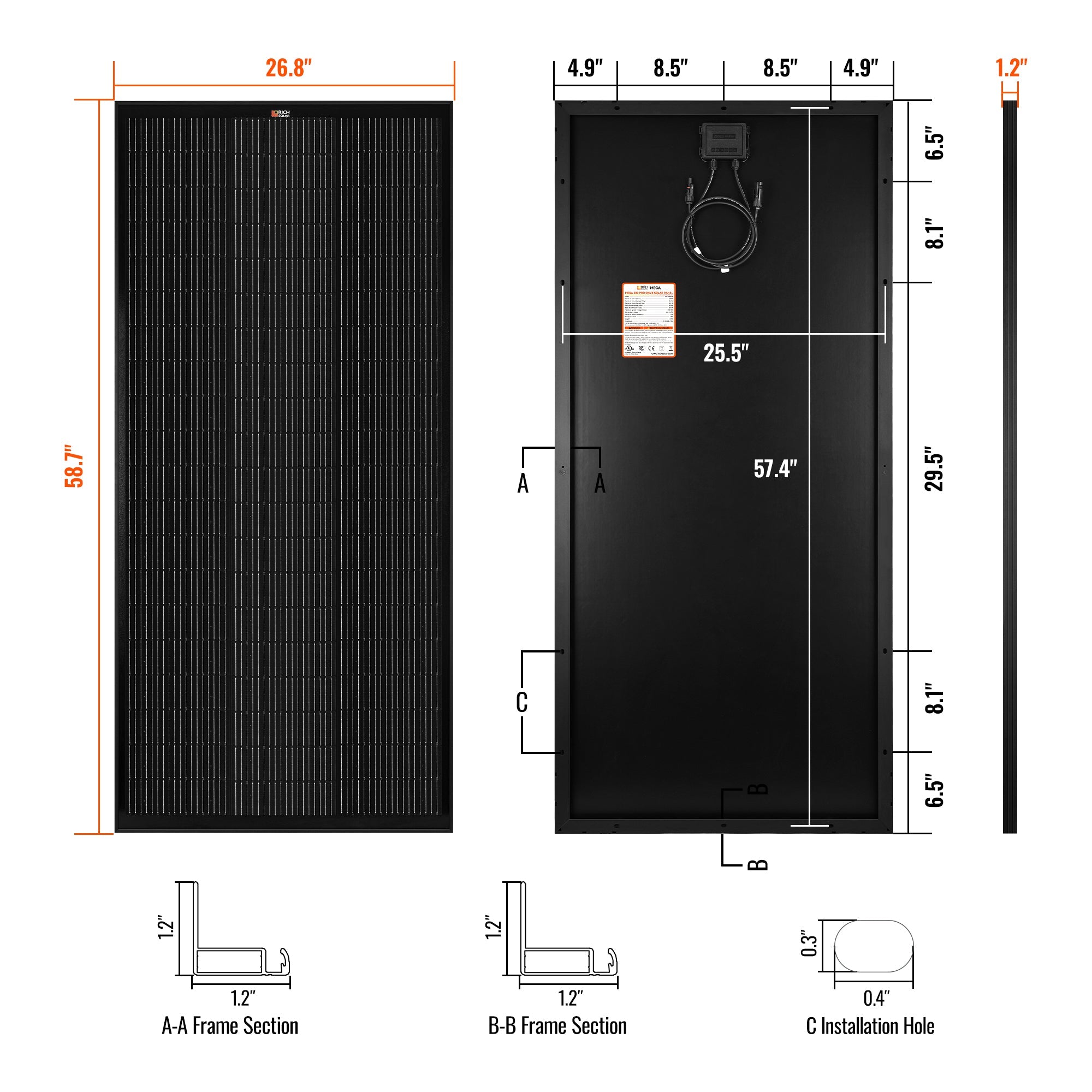

| Dimensions | 58.7 × 26.8 × 1.2 inches |
| Weight | 24.0 lbs |
| Operating Temperature Range | -40°F to +185°F |
Frequently Asked Questions
Can I run 110V appliances with this 24V solar panel?
Yes. To run household 110V AC appliances, you must link the solar panel to a charge controller, a battery bank, and a power inverter. The inverter converts the stored DC power into the AC electricity required by standard consumer electronics.
Do I need an inverter if I am only charging an RV or boat battery?
No inverter is required if your only goal is storing power directly inside a battery bank. However, you must always use a compatible MPPT or PWM solar charge controller to regulate the voltage flowing from the panel to ensure the battery does not overcharge.
How long do Rich Solar MEGA panels last?
Rich Solar MEGA series panels feature an industry-standard 25-year performance output warranty. Grade A+ engineering ensures it retains greater than 95% output after 5 years, 90% output after 10 years, and at least 80% output efficiency at the 25-year milestone.
Do solar panels work effectively during winter months?
Yes, solar panels generate electricity anywhere ambient sunlight is present. Cold winter temperatures actually optimize single-crystal silicon performance. Note that you must keep the face of the tempered glass clear of heavy snow, dirt, or shade structures to retain full output capacity.
