Versa Lift Model 24M Mounted Wall Switch Attic Storage Lift
Note from the owner: For all of you that would rather hire someone to assemble/install this product for you we have partnered with:
They can help you with the assembly when you buy any of our products. Just click their logo and you will be taken to their site where you can schedule and pay for one of their installers to come directly to your home.

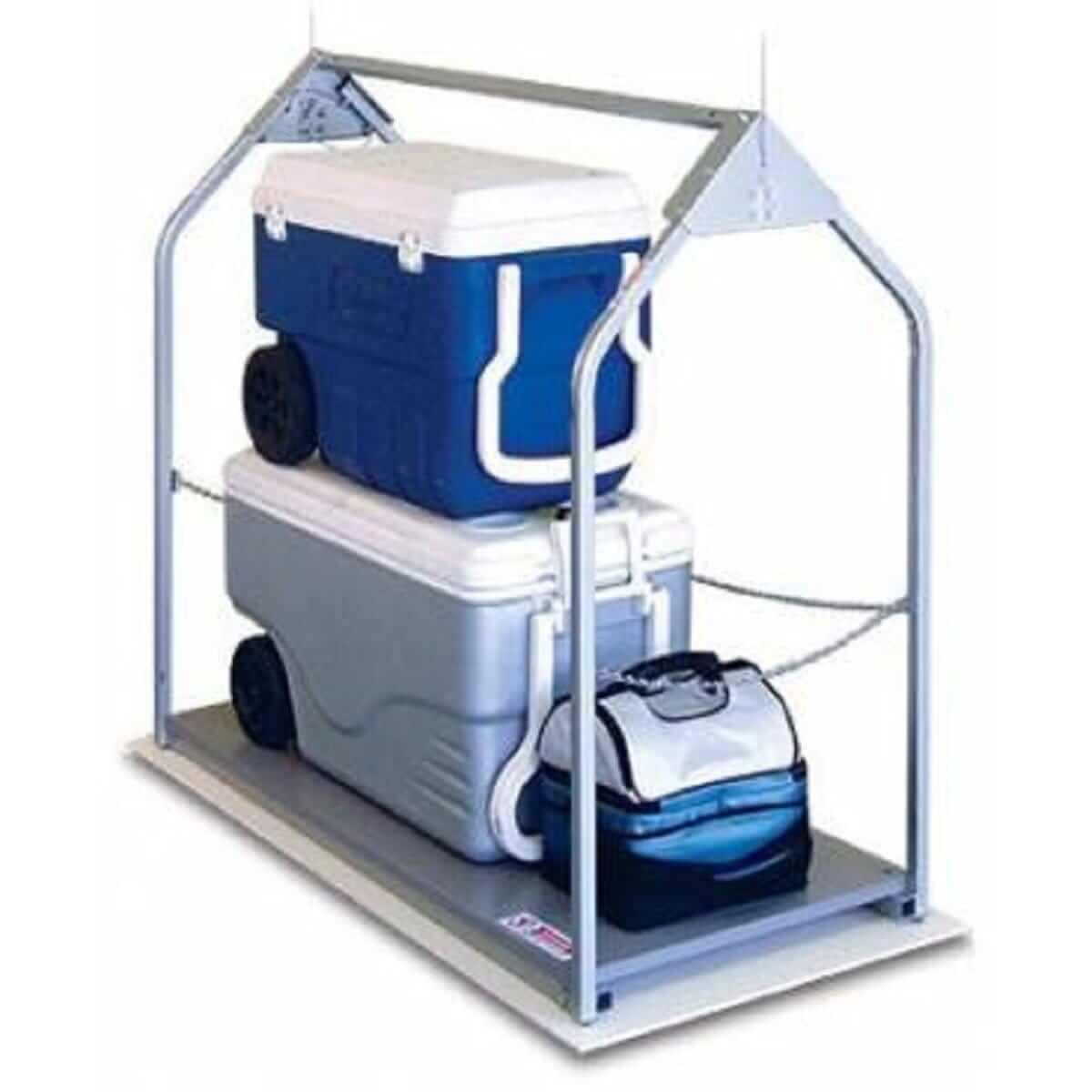

The Versa Lift Model 24M is a motorized attic storage lift that raises and lowers a steel platform between your garage and attic, for garages with 8 to 11 feet of ceiling height. It has a 200 lb load capacity and includes two mounted wall switches, one upstairs and one downstairs, with the downstairs switch featuring a key lock so you can lock the unit out when it's not in use.
Home organization doesn't have to be a chore when you have a convenient attic lift system. The VersaLift revolutionizes how home storage is done, letting you move heavy holiday containers and other overhead storage items without lugging them up and down a ladder or risking a fall from a misplaced step.
Specifications
| Max. Lift Height | 11 ft. |
| Garage Floor to Attic Floor Lift Range | 8-11 ft. |
| Controller Type | Mounted Wall Switch (2, upstairs + downstairs with key lock) |
| Load Capacity | 200 lbs. |
| Application | Storage lift |
| Material Type | Powder-coated steel |
| Power Requirements | 115 volt |
| Dimensions (Outside) | 25 5/8" W x 48" H x 57" L |
| Dimensions (Inside / Storage Volume) | 20 3/4" W x 39" H x 44" L = 15.3 cu. ft. |
| Platform Size | 20 3/4" W x 44" L |
| Ceiling Panel Dimensions | 24" x 48" |
| Opening Required | 22 1/2" x 46-1/2" |
| Minimum Attic Headroom Clearance | 47-48 in. directly above the lift opening |
Frequently Asked Questions
How do I know if the Model 24M fits my garage?
Measure the distance from your garage floor to attic floor. The Model 24M is built for a range of 8 to 11 feet. If your ceiling is taller, see the Model 24MH (11-14 ft) or 24MHX (14-17 ft).
How does the wall switch control work, and what's the key lock for?

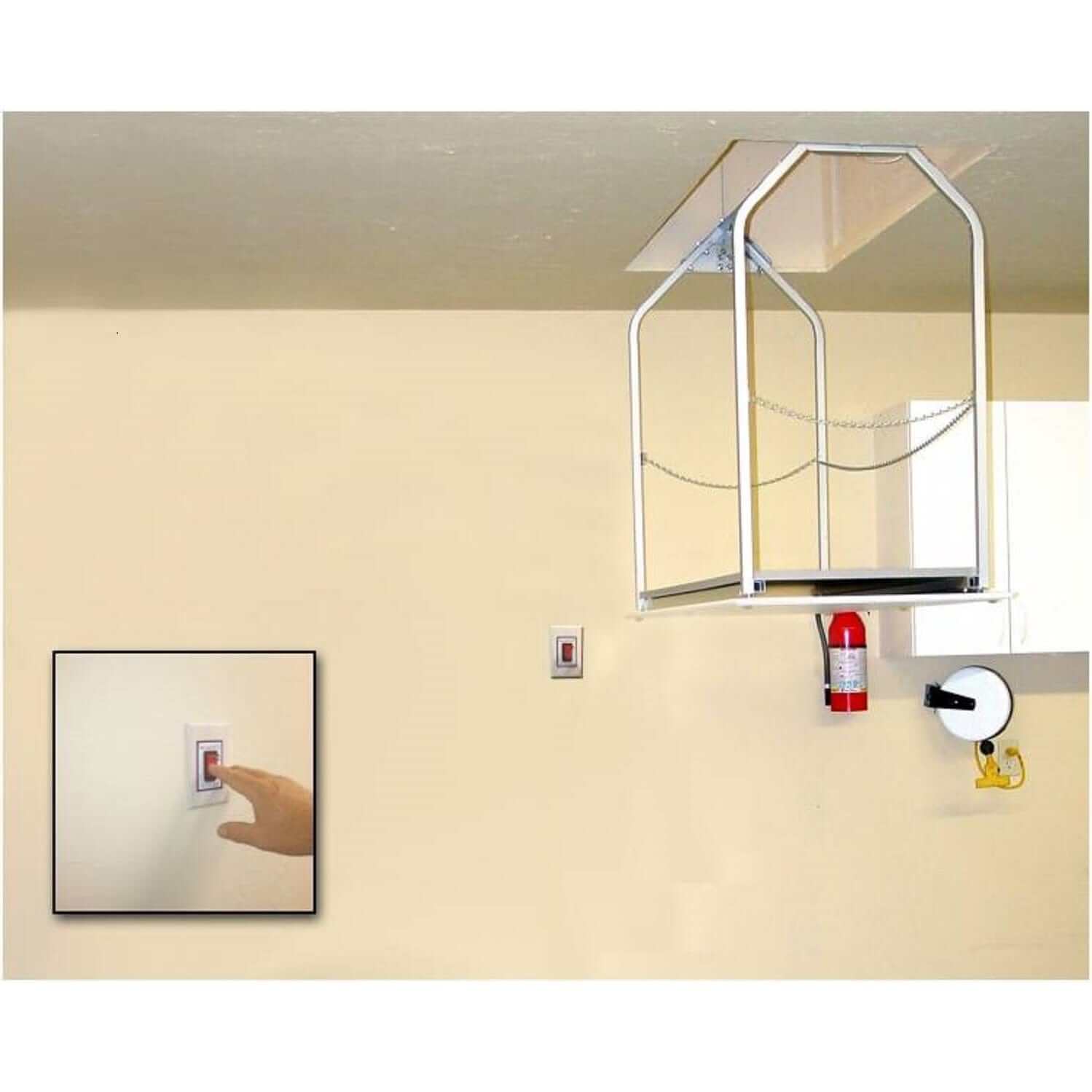

The Model 24M includes two hard-wired wall switches, one mounted upstairs and one downstairs. The downstairs switch has a key lock so you can disable the lift when it's not in use, which is useful for households with children or for job sites where you want to control who can operate it.
How much weight can it hold?
The Model 24M has a 200 lb. load capacity.
Does it come assembled?
No, it ships unassembled. A full installation manual, assembly PDF, and rough-in guide are linked below, and professional installation help is available through the assembly partner above.
Is a warranty available?
Yes, a 2-year extended warranty can be added at checkout, optionally bundled with the Attic Stair Safety Rail.
Will the Model 24M fit my attic's joist framing?
The rough-in guide linked below covers the framing requirements for both standard dimensional lumber joists and engineered I-joists. Check your joist spacing and the rough-in guide before ordering, since tighter or non-standard framing may need reinforcement.
Do I need to hire a contractor to install it?
Many owners install the Model 24M themselves or with a handyman using the included assembly and installation guides; others prefer a licensed contractor, especially if the attic opening needs to be framed or reinforced first, and the wall switches need to be wired in. We also offer professional installation help if you'd rather not DIY it.
Does the platform stop automatically?
Yes, the lift is designed to stop automatically when the platform reaches attic floor level, so you don't have to time the stop yourself.
Is this cheaper than renting an off-site storage unit?
Most owners recoup the cost within a couple of years compared to a monthly off-site storage unit, while keeping their belongings secure at home instead of in a facility.
How much clearance do I need in the attic above the lift?
Plan for at least 47-48 inches of headroom directly above the lift opening in the attic. This is separate from the 8-11 ft floor-to-floor lift range, and low attic clearance is one of the most common installation planning mistakes, so measure this before ordering.
