Garage Gator Motorized Platform Lift GG8220PL
Product Description

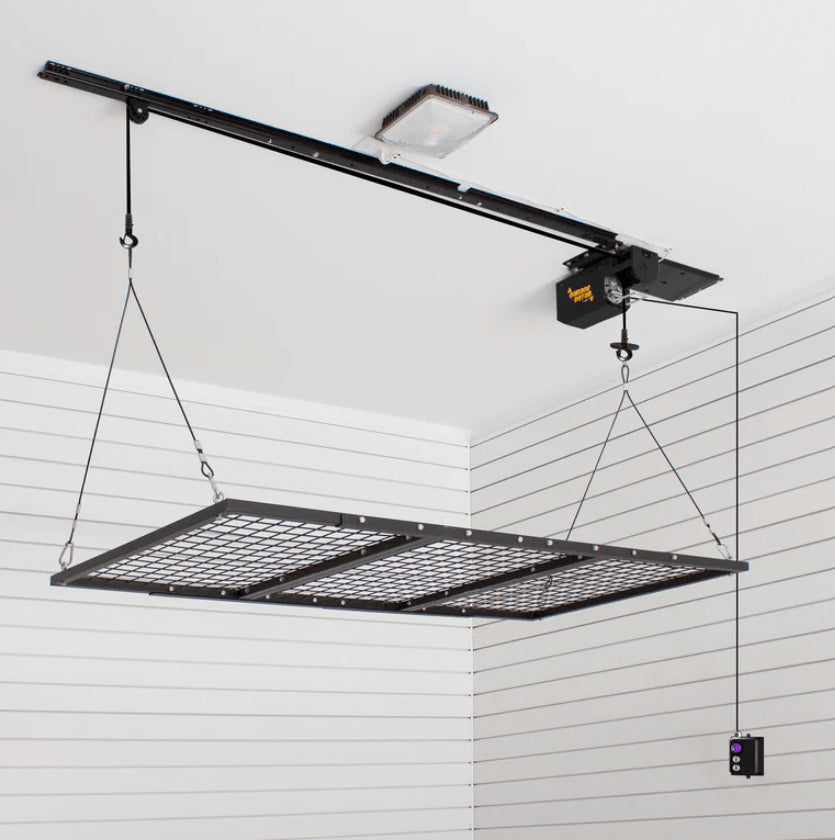

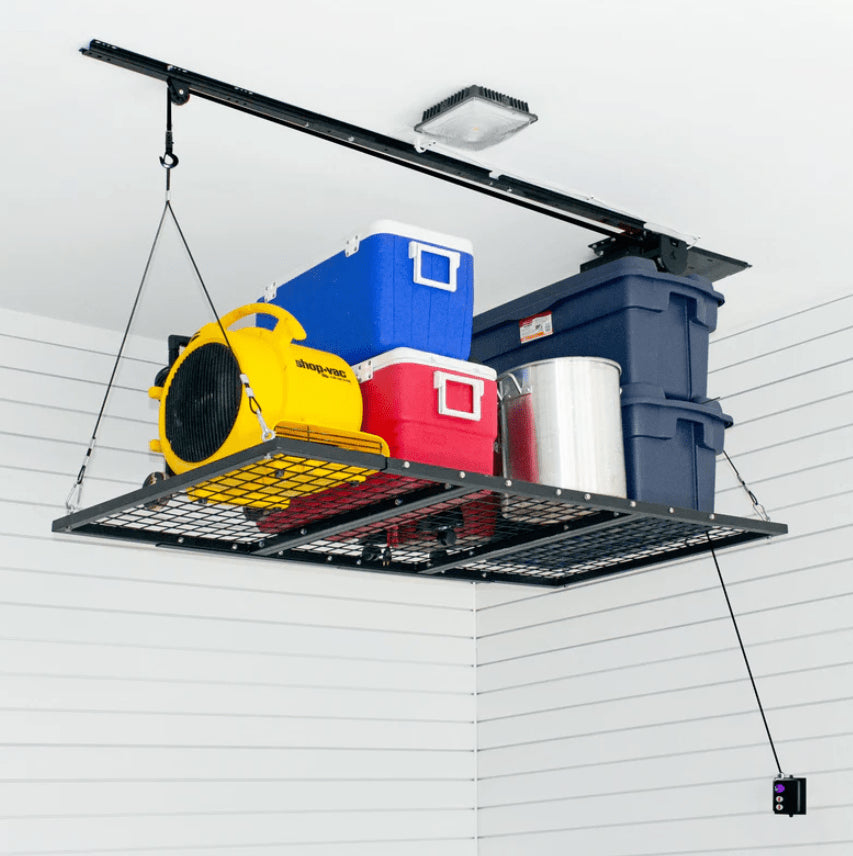

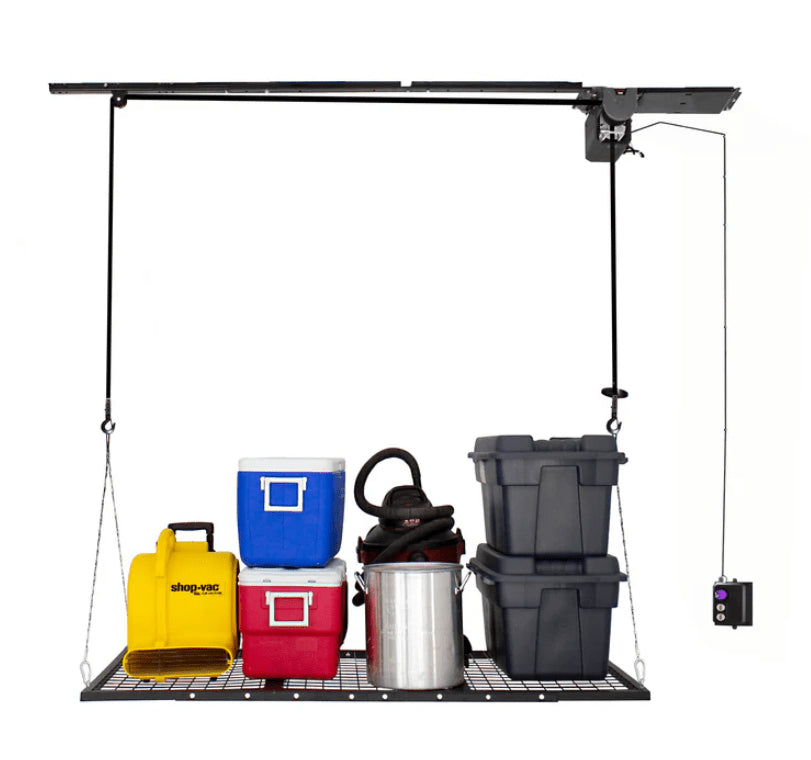

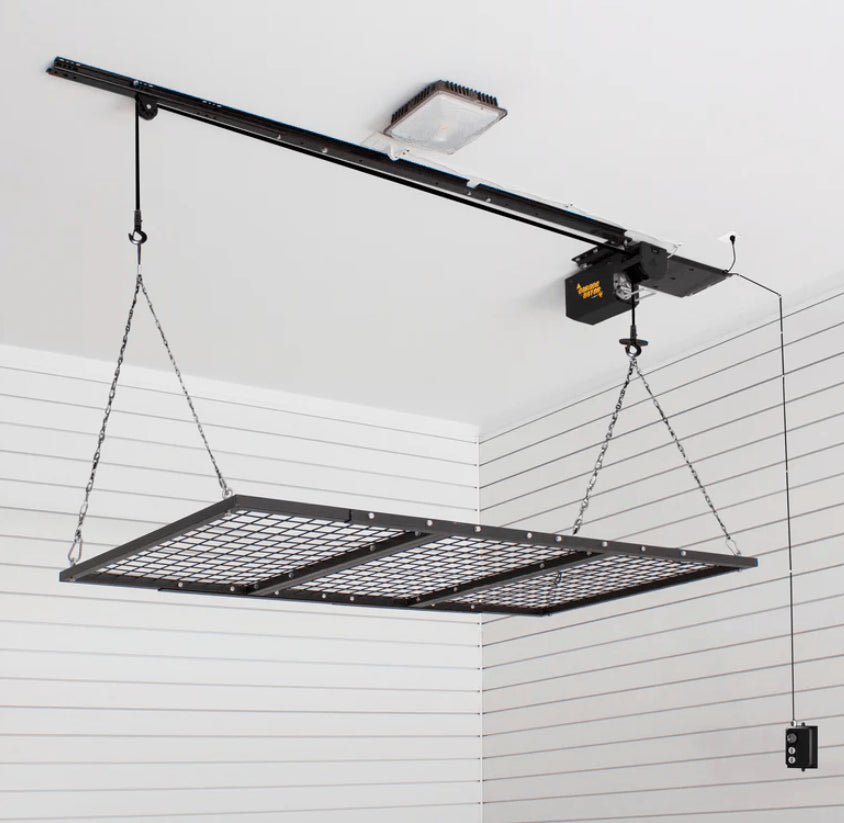

The Garage Gator GG8220PL replaces a bare lift bar with a 3 ft. x 6 ft. storage platform, giving you nearly 18 sq. ft. of enclosed overhead storage for boxes, totes, seasonal decorations, and anything else that doesn’t hang neatly from hooks. Load the platform at floor level, then raise it to the ceiling with the wired push-button controller.
The GG8220PL’s motor is rated for 220 lbs total; the platform itself weighs about 50 lbs, leaving roughly 170 lbs of usable cargo capacity once installed. It ships complete with the platform, motor, mounting hardware, and a keyed controller for safety.
Includes:
- 3 ft. x 6 ft. storage platform
- Motor mounting plates
- Motor hoist
- Key lock for safety
- 11 ft. wired push-button controller
- Ceiling mount with channel bar
- Adjustable 6–9 ft. lift bar
- 8 storage hooks
- 4 safety cables
- Installation hardware
WARNING: Handling the coated electrical wires of this product may expose you to chemicals including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For more information go to www.p65warnings.ca.gov.
Specifications/Warranty
- Model Number: GG8220PL
- Motor Rated Capacity: 220 lbs. total
- Platform Weight: 50 lbs.
- Usable Cargo Capacity: ≈170 lbs. (220 lb. motor rating minus the 50 lb. platform)

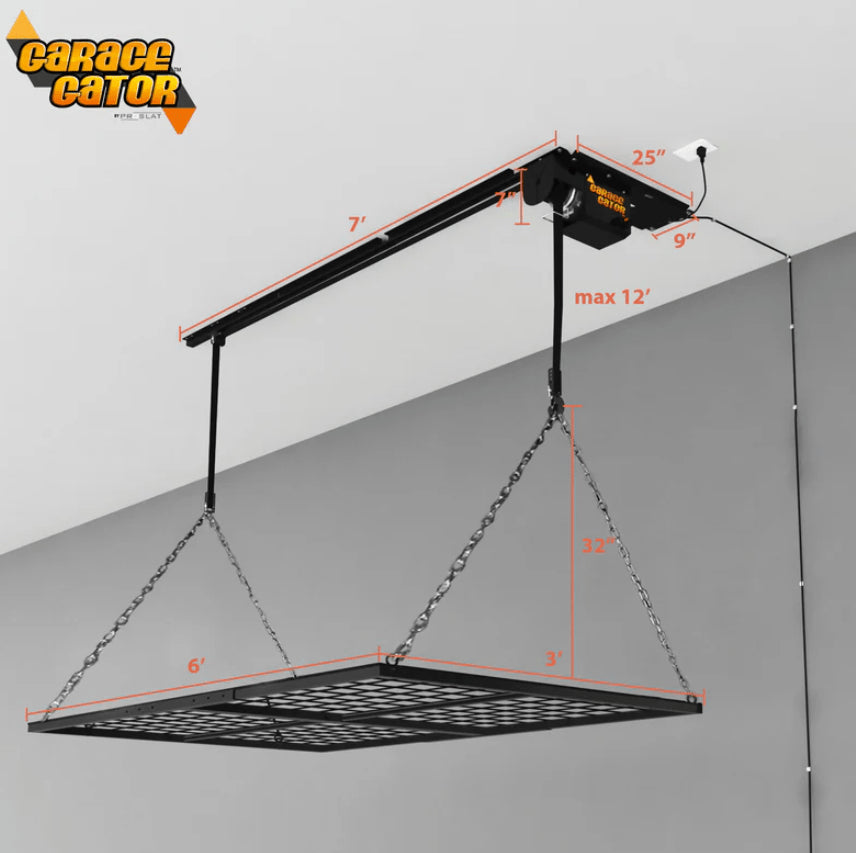

- Platform Size: 3 ft. wide x 6 ft. long
- Cable Length: 9.75 ft.

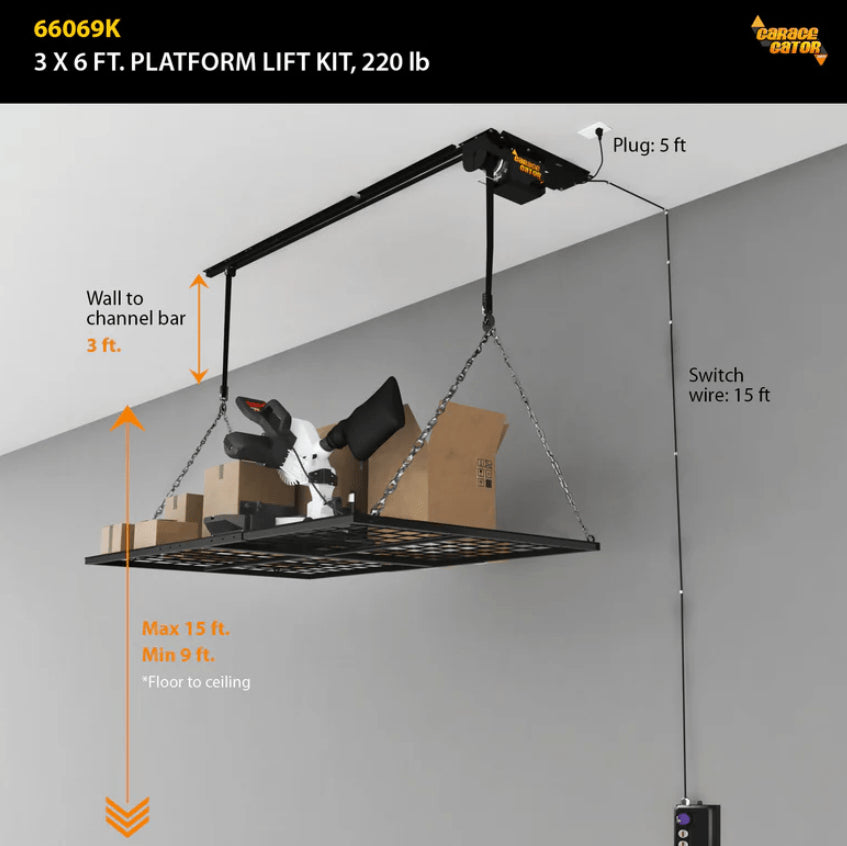

- Ceiling Range: Accommodates 9–15 ft. ceilings
- Cable Diameter: 3 mm
- Motor: Electric 3/5 HP
- Voltage: 120V / 60Hz, 4.5 Amps
- Use: Designed for indoor use
Tech Drawing/ Assembly PDF
Assembly PDF — Lift Instructions
Assembly PDF — Platform Instructions
Frequently Asked Questions
How much weight can the platform actually hold?
The motor is rated for 220 lbs total, but the platform itself weighs about 50 lbs, so the usable cargo capacity is roughly 170 lbs once the platform is installed.
How much storage space does the platform provide?
The platform measures 3 ft. by 6 ft., which is nearly 18 sq. ft. of overhead storage — enough for several bins, seasonal decorations, or bulky items that don’t hang well from hooks.
What ceiling heights does it fit?
It accommodates ceilings from 9 to 15 ft., with a 9.75 ft. cable length and an adjustable 6-9 ft. lift bar.
Are there two separate assembly guides?
Yes — one PDF covers the motor and lift bar assembly, and a second, separate PDF covers assembling the 3x6 platform itself. Both are linked on this page.
How is it operated?

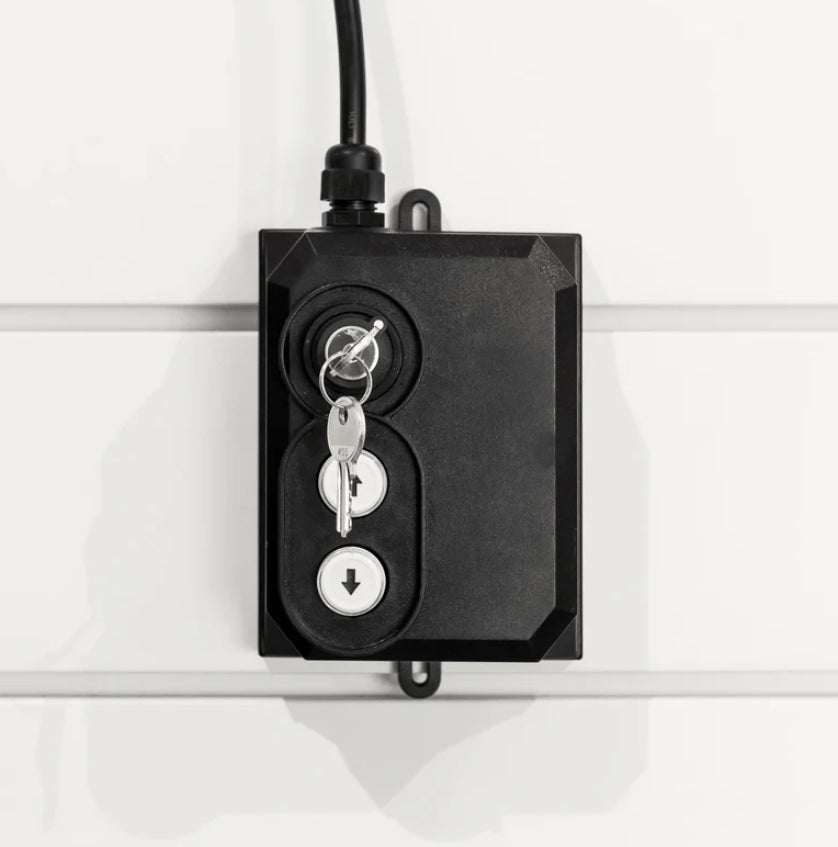

An 11 ft. wired push-button controller raises and lowers the platform, and it’s keyed so only someone with the key can operate it — useful for safety around children.
Is this safe to install myself?
The kit includes all mounting hardware and both assembly PDFs. As with any product with coated electrical wiring, review the Prop 65 handling notice before installation, and wash your hands after handling the wiring.
Can I buy just the platform if I already own a Garage Gator lift?
Yes, the 3x6 platform is also sold separately as an accessory for existing 220 lb Garage Gator motor systems.
What voltage does the motor need?
Standard 120V / 60Hz household power, drawing 4.5 amps.
